Chimney

•
•
•

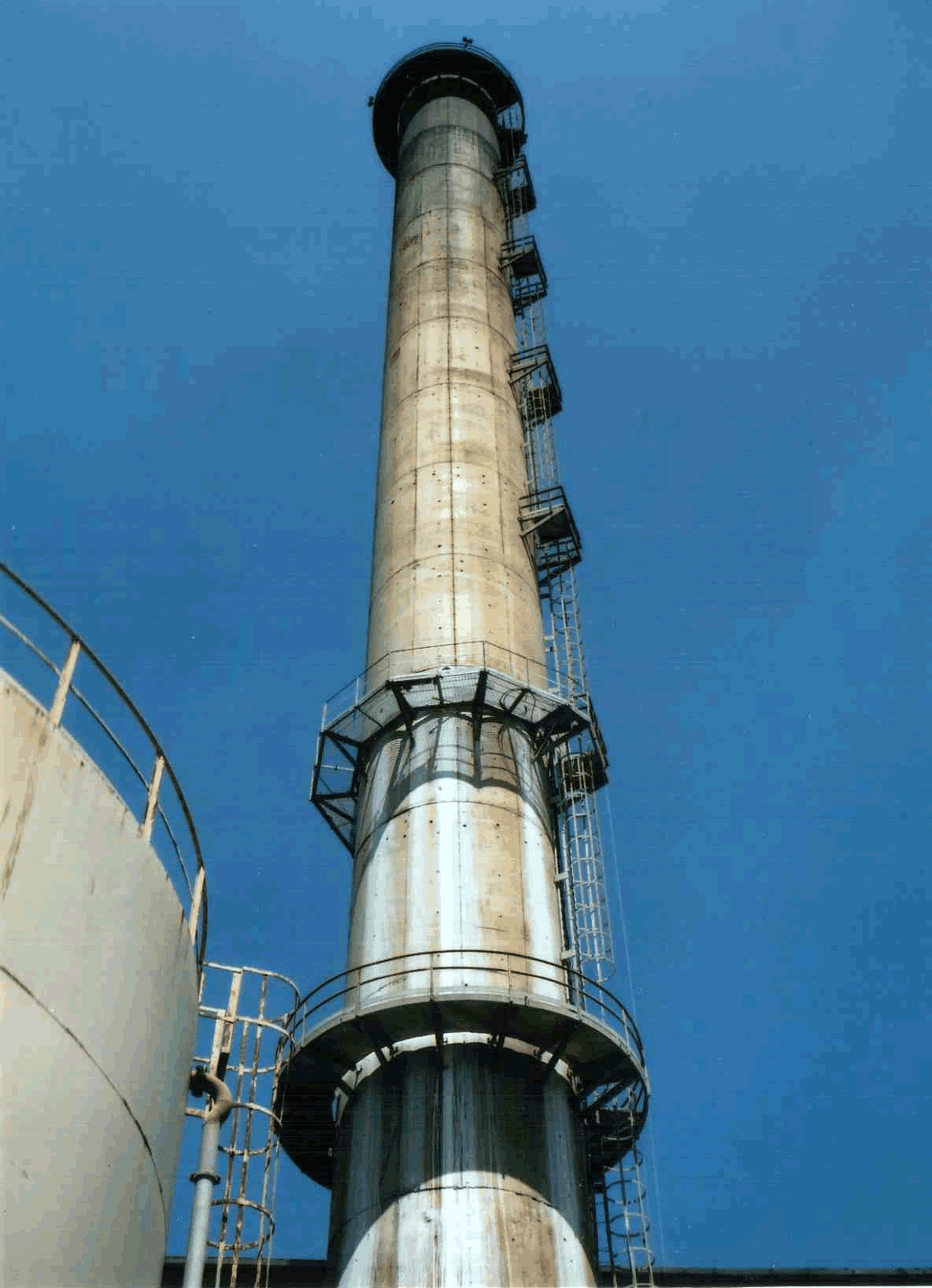

M.D. CHIMNEY

A chimney is a structure for venting hot flue gases or smoke from a boiler to the outside atmosphere. Chimneys are typically vertical, or as near as possible to vertical, to ensure that the gases flow smoothly, drawing air into the combustion in what is known as the stack, or chimney. We  manufacture various sizes of chimney 300 mm dia. to 4000 mm. diameter & 30 mtr. to 45 meter hight in the shape of bottom 30 % conical & balance top round shape with wind bracker spiral rings , top side conical hood Ladder with cage up to top level with two nos. plateform & top side one painting trolley. It is manufactured in stainless steel, Aluminum, alloy steel & as per clients requirements.

 Manufacturing Standard

We are manufacturing as per ASME,BIS, DIN  IS & International Standard  Codes  for high quality job performance.

Internal Inspection & Documentation System

Equipment are inspected by our Q.C engineer with complete internal record of inspection as per client approved drawing & specification & with quality Inspection documentation.

Finishing & Painting

All inner & outer Surface of chimney are  Prepared  as per Standard where  required. All M.S. Parts will be painted with  one coat of red oxide primer & two coat of Heat registance aluminum paint.

Application of Chimney

Power Industry ,sugar industry, Petrochemical,Food Industry etc.
